Product Summary

The 754625001 is a Small Form-factor Pluggable (SFP) Stacked 2-by-1 Multi-Port Connector.

Parametrics

754625001 absolute maximum ratings: (1)Current - Maximum per Contact: 0.5A; (2)Shield Type: EMI Fingers; (3)Shielded: Yes; (4)Voltage - Maximum: 120V AC (RMS)/DC; (5)Temperature Range - Operating: -40℃ to +85℃.

Features

754625001 features: (1)Orientation: Right Angle; (2)PC Tail Length: 2.07mm; (3)PCB Locator: Yes; (4)PCB Retention: Yes; (5)PCB Thickness - Recommended: 2.36mm; (6)Packaging Type: Tray; (7)Panel Mount: No; (8)Pitch - Mating Interface: 0.80mm; (9)Pitch - Termination Interface: 0.80mm; (10)Plating min - Mating: 0.762μm; (11)Plating min - Termination: 0.762μm.

Diagrams

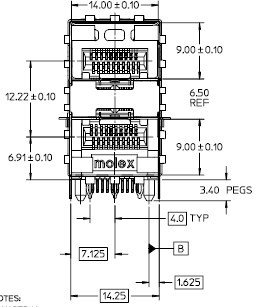

754625001 block diagram
