Product Summary

The 917803-2 is a Dynamic Series Connector.

Parametrics

917803-2 absolute maximum ratings: (1)Voltage Rating: 630V AC/DC; (2)Current Rating: 16A; (3)Temperature Rating: －55℃ to 105℃.

Features

917803-2 features: (1)Applies To Wire/Cable; (2)Contact; (3)Contact Type = Pin; (4)Product Series = D-5; (5)Wire Range = 3.00-6.002 [12-10] mm [AWG].

Diagrams

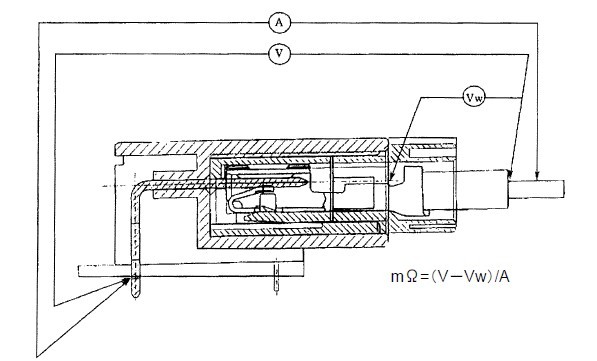

917803-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
917803-2
917803-2
TE Connectivity / AMP
Headers & Wire Housings TAB 12-10 AWG 15 AU 1200
Data Sheet
0-1: $0.44
1-1200: $0.41
1200-2400: $0.39
2400-6000: $0.36
