Product Summary

The 928344-7 is a Standard Timer (AMP RAST 5 Appliance) Connector.

Parametrics

928344-7 absolute maximum ratings: (1)Centerline: 5.0 mm; (2)Housing Material: Polyamide, PA 6.6 and PA 6; (3)Standard Colour: Natural; (4)Voltage rating: 250 V; (5)Current rating: 6 to 16A; (6)Air and Creepage Distance: >3.2 mm; (7)Flammability Rating: UL 94 V-2; (8)Approvals: VDE, UL.

Features

928344-7 features: (1)5.00 mm Centerline; (2)Connector; (3)Not Preloaded; (4)Connector Style = Receptacle; (5)7 Positions.

Diagrams

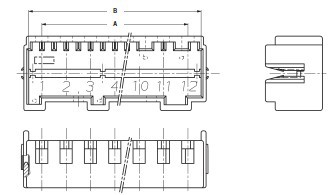

928344-7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
928344-7
928344-7
TE Connectivity / AMP
Automotive Connectors 7P STD-TIMER GEH
Data Sheet
0-23900: $0.27
