Product Summary

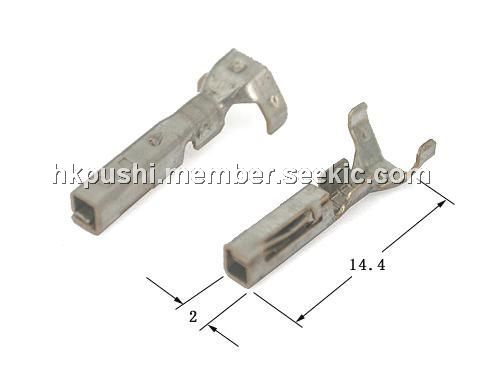

The 173681-1 is a MULTILOCK Connector.

Parametrics

173681-1 absolute maximum ratings: (1)Voltage rating: 11VDC; (2)Current rating: 5A; (3)Temperature rating: -30 to +105℃; (4)Termination resisitance: 100mΩ.

Features

173681-1 features: (1)Contact; (2)Contact Type = Receptacle; (3)Applies To Wire/Cable; (4)Wire/Cable Type = Discrete Wire; (5)Wire Range = 0.30-0.602 [22-20] mm [AWG].

Diagrams

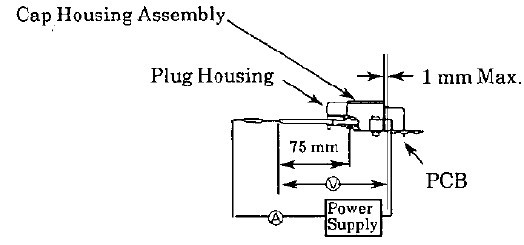

173681-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
173681-1
173681-1
TE Connectivity / AMP
Power to the Board 040MLC SKT 24-20 BR/SN
Data Sheet
0-1: $0.05
1-25: $0.04
25-100: $0.03
100-250: $0.03
