Product Summary
The 1-1393212-0 is a General Purpose Relay. The applications of the 1-1393212-0 include HVAC, residential / commercial appliances, industrial controls.
Parametrics
1-1393212-0 absolute maximum ratings: (1)Contact - Rated Current: 30 A; (2)Coil - Resistance: 350 Ω; (3)Actuating System: DC ; (4)Coil - Rated Power: 1.70 W; (5)Input Voltage: 24 VDC; (6)Insulation - Special Features: None.
Features
1-1393212-0 features: (1)30A, 2 form A (NO) and 2 form C (CO) switching capability; (2)Designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA; (3)Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5mm over surface; (4)Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contact; (5)Meets requirements of UL Class F construction; (6)UL approved for 600VAC switching (1.5HP); (7)New screw terminal version (consult factory for availability, ratings).

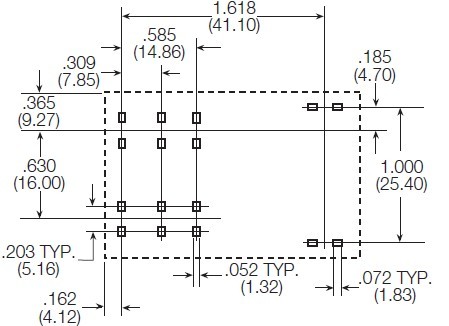

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1-1393212-0 |
TE Connectivity / P&B |
General Purpose / Industrial Relays T92S7D12-24=T92 |
Data Sheet |
Negotiable |
|
||||||||||||
