Product Summary

The 1-66332-4 is a M series pin and socket connector.

Parametrics

1-66332-4 absolute maximum ratings: (1)Voltage rating: 200V; (2)Current rating: 10A; (3)Temperature rating: -55 to 150℃; (4)Flammability Ratings: UL94V-0.

Features

1-66332-4 features: (1)Contact Type = Pin; (2)Contact Classification = Signal; (3)Type III+ Series; (4)Bright Tin Contact Plating, Mating Area, Material; (5)Wire Range = 0.20-0.602 [24-20] mm [AWG].

Diagrams

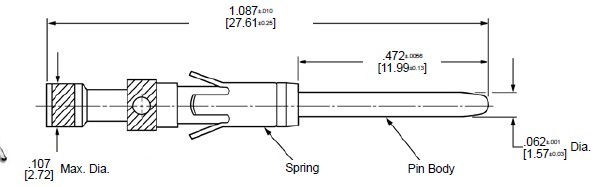

1-66332-4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1-66332-4
1-66332-4
TE Connectivity / AMP
Pin & Socket Connectors PIN 24-20 BR/SN SIG TYPE III
Data Sheet
0-4000: $0.12
4000-12000: $0.12
12000-24000: $0.11
