Product Summary
The 2-746610-1 is an AMP-LATCH Ribbon Cable Connector.
Parametrics
2-746610-1 absolute maximum ratings: (1)Contact - Rated Current (A): 1A; (2)Operating Voltage Reference: AC; (3)Operating Voltage (VAC): 250VAC; (4)Operating Temperature: -65 to +105℃.
Features
2-746610-1 features: (1)AMP-LATCH Product Line; (2)Wire-to-Board; (3)Applies To Printed Circuit Board; (4)Connector Assembly; (5)Connector Style = Plug.

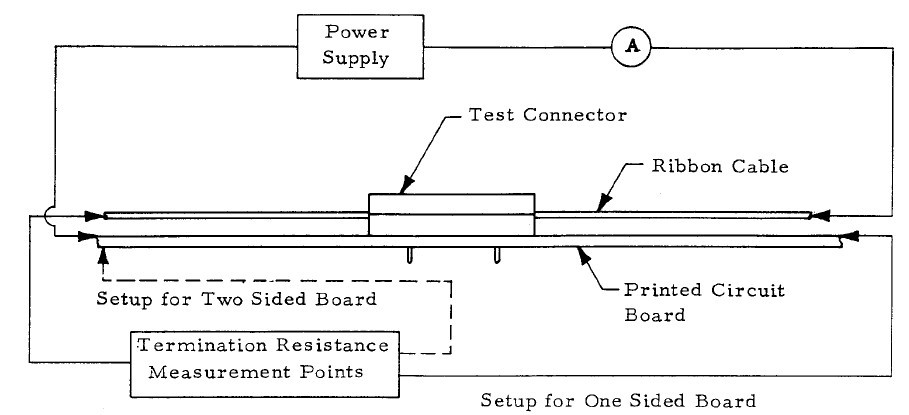

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2-746610-1 |
TE Connectivity / AMP |
Headers & Wire Housings .1CL IDC PLG 2X05P |
Data Sheet |
|
|
||||||||||||
