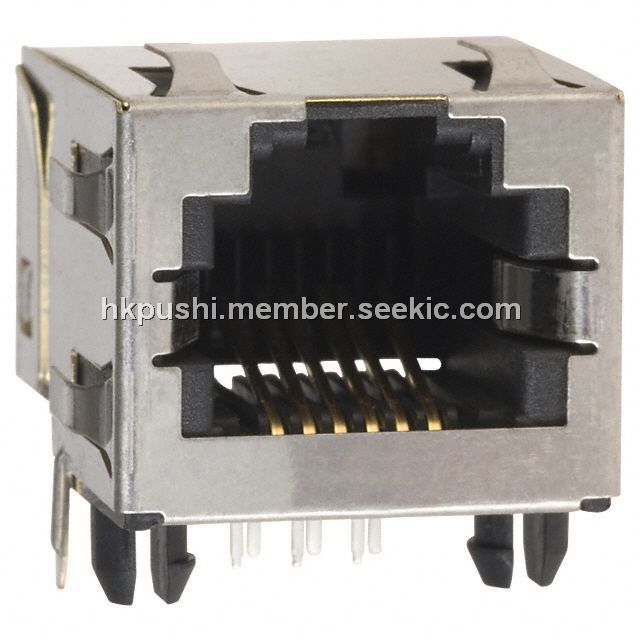

The 438600005 is a Modular Jack.

Parametrics

438600005 absolute maximum ratings: (1)Current - Maximum per Contact: 1.5A; (2)Grounding to PCB: Yes; (3)Grounding to Panel: Yes; (4)Shielded: Yes; (5)Voltage - Maximum: 150V AC (RMS); (6)Temperature Range - Operating: -40℃ to +85℃.

Features

438600005 features: (1)Orientation: Right Angle (Side Entry); (2)PCB Locator: Yes; (3)PCB Retention: Yes; (4)PCB Thickness - Recommended: 1.60mm; (5)Packaging Type: Tray; (6)Panel Mount: With Flange; (7)Pitch - Mating Interface: 1.02mm; (8)Pitch - Termination Interface: 1.02mm; (9)Plating min - Mating: 1.270μm; (10)Plating min - Termination: 2.540μm.

Diagrams

438600005 block diagram
