Product Summary

The 520971-1 is a Quick Disconnect Receptacle.

Parametrics

520971-1 absolute maximum ratings: (1)Proprietary Name = Ultra-Pod; (2)Receptacle Style = Flag; (3)Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]; (4)Insulation Diameter (mm [in]) = 2.67 [.105] Max.; (5)Insertion Force = Normal; (6)Material = Brass; (7)Finish = None; (8)Insulation Support = Insulation Support; (9)UL Listed = File No. E66717; (10)Color = Natural.

Features

520971-1 features: (1)Proprietary Name = Ultra-Pod; (2)Receptacle Style = Flag; (3)Fully Insulated; (4)Wire Range = 0.80-2.002 [18-14] mm [AWG]; (5)Mating Area Interface Dimensions = 6.35 x 0.81 mm.

Diagrams

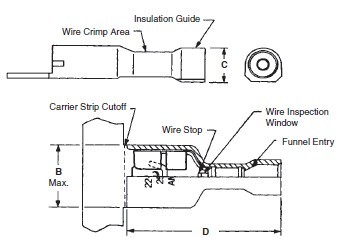

520971-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
520971-1
520971-1
TE Connectivity / AMP
Automotive Connectors 250 ULTRA-POD FLG RCPT 18-14BR
Data Sheet
0-1800: $0.11
1800-7200: $0.11
7200-10800: $0.11
10800-25200: $0.10
