Product Summary

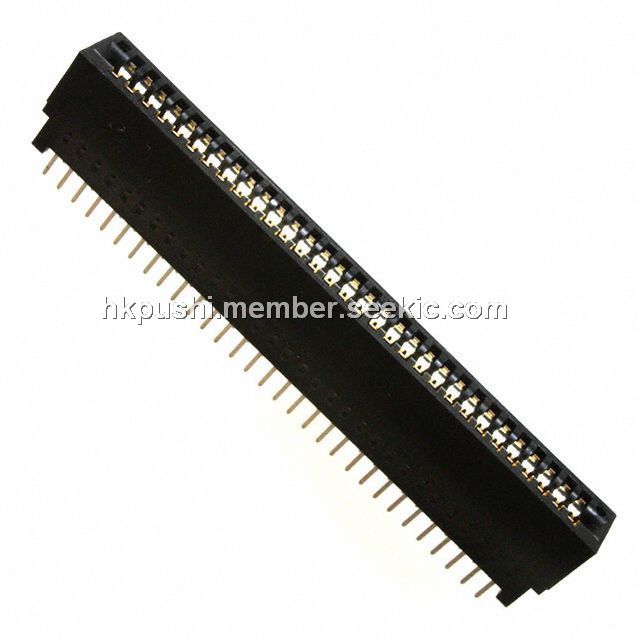

The 5530843-5 is a High Current Card Edge Connector.
Parametrics
5530843-5 absolute maximum ratings: (1)ratings Signal contact: 3A max; (2)Insulation resistance: 5,000MΩ minimum at 500 VDC for 2 minutes, power MIL-STD 1344, Method 3003; (3)Dielectric strength: 1,500VDC for 1 minute, per MIL-STD 1344, Method 3001.
Features
5530843-5 features: (1)Connector; (2)Product Series = Standard Edge II; (3)Type of Connector = Standard; (4)2.54 mm Centerline; (5)25 Dual Positions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5530843-5 |
TE Connectivity / AMP |
Standard Card Edge Connectors 100 VRT 025DP |
Data Sheet |
|
|
||||||||||||
