Product Summary

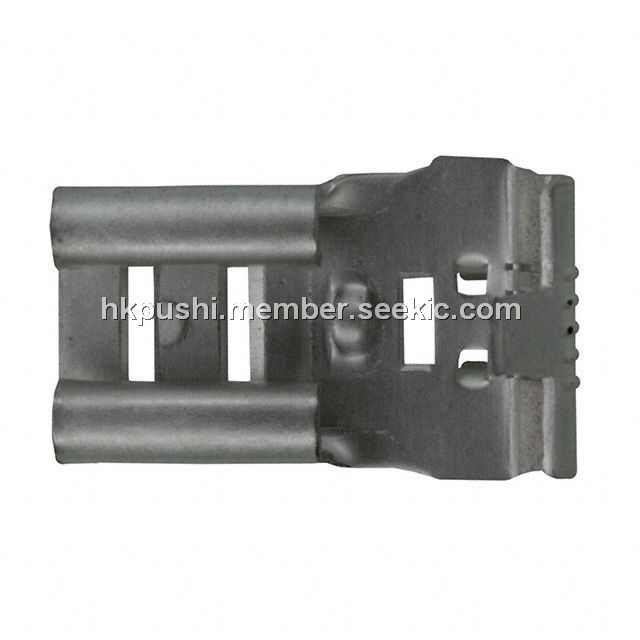

The 62056-3 is a FASTON Uninsulated Receptacle.
Parametrics
62056-3 absolute maximum ratings: (1)Product Type = Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]; (4)Receptacle Style = Flag; (5)Insulation Support = Non-Insulation Support; (6)Wire/Cable Type = Stranded; (7)Insertion Force = Normal; (8)Material = Brass; (9)Finish = Tin; (10)Crimp Type = Tab-Lok.
Features
62056-3 features: (1)Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (4)Board Mount = No; (5)Receptacle Style = Flag.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 62056-3 |
TE Connectivity / AMP |
Terminals .25 FLG FAST RCPT |
Data Sheet |
|
|
||||||||||||||||||||
