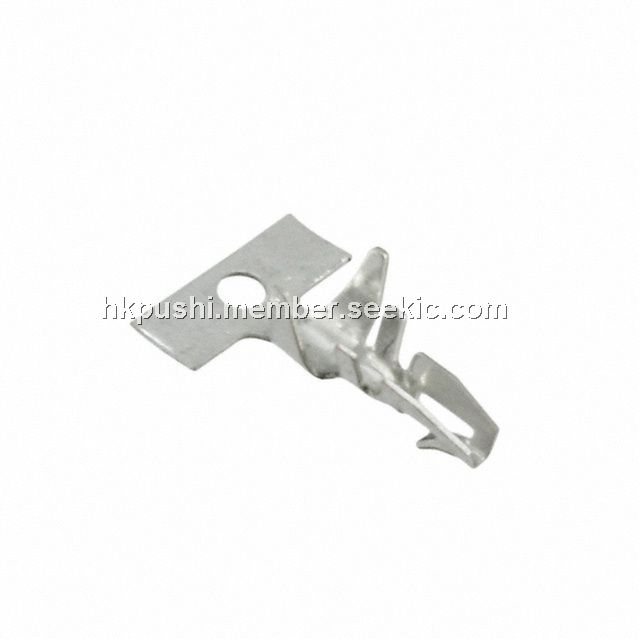

The 3-794122-1 is a Miniature/Standard AMP-IN Terminal.
Parametrics
3-794122-1 absolute maximum ratings: (1)Operating Temperature: -55℃ to 85℃; (2)Current Rating: 20 Amperes max; (3)Insertion Force: 40 lbs. max. per pin; (4)Retention Force: 7 lbs. min. per pin.
Features
3-794122-1 features: (1)Terminal; (2)Terminal Configuration = Miniature; (3)Wire Range = 0.12-0.402 [26-22] mm [AWG]; (4)PCB Hole Diameter = 1.40 mm; (5)Insulation Diameter = 1.02-2.79 [.040-.110] mm [in].
