Product Summary
The 5556416-1 is a PCB Mounted Jack. The applications of the 5556416-1 include Communications: Telephones; Routers; Servers; Switches; Computers, Business equipment, Consumer electronics.
Parametrics
5556416-1 absolute maximum ratings: (1)Shielded: No; (2)Product Type = Connector; (3)Jack Type = RJ45; (4)PCB Mounting Orientation = Top Entry (Vertical); (5)PCB Mount Style = Through Hole; (6)Termination Method to PC Board = Solder; (7)Performance Category = Cat 3; (8)Number of Contacts Loaded = 8; (9)Grounding Options = Without; (10)Panel Stops = Without; (11)Keyed = No; (12)Profile = Standard; (13)Color = Black; (14)Latch Style = Standard.
Features
5556416-1 features: (1)Standardization for network connections; (2)Ease of use; (3)Broad portfolio; (4)RoHS compliant.

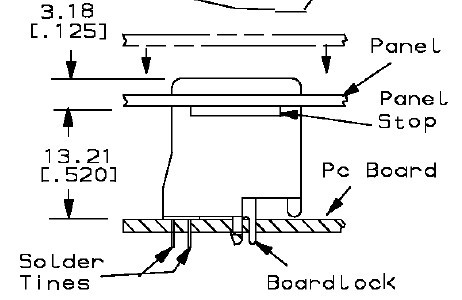

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

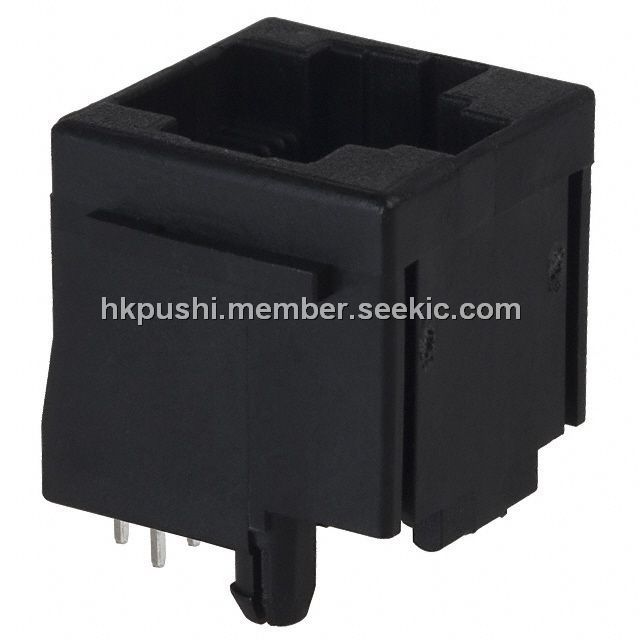

 5556416-1 |
TE Connectivity / AMP |
Ethernet & Telecom Connectors 8 PCB TOP ENTRY |
Data Sheet |
|
|
||||||||||||
