Product Summary

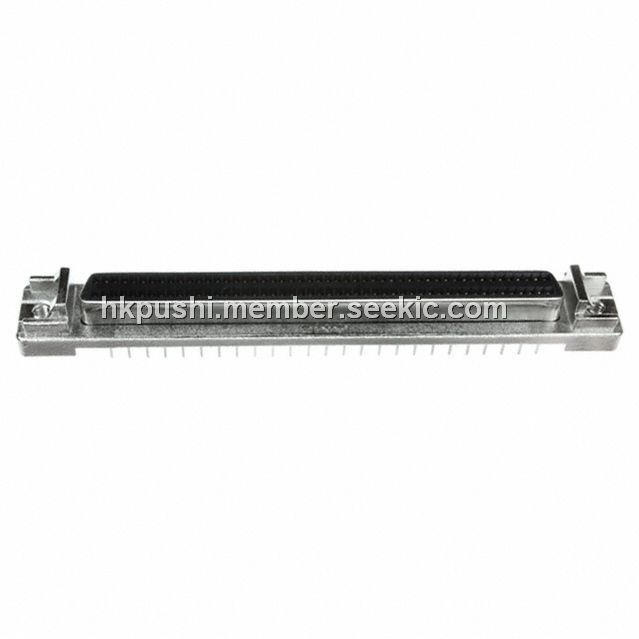

The 5749069-9 is an AMPLIMITE Subminiature D Connector.
Parametrics
5749069-9 absolute maximum ratings: (1)UL Flammability Rating = UL 94V-0; (2)Shielded = Yes; (3)Product Type = Connector; (4)PCB Mounting Orientation = Vertical; (5)Termination Method to PC Board = Through Hole - Solder; (6)PCB Mount Retention = With; (7)PCB Mount Alignment = Without; (8)Shell Type = Full Metal; (9)Product Series = Series III; (10)Shell Material = Steel; (11)Bracket Material = Zinc.
Features
5749069-9 features: (1)Connector; (2)Connector Style = Receptacle; (3)100 Positions; (4)PCB Mounting Orientation = Vertical; (5)Termination Method to PC Board = Through Hole-Solder.

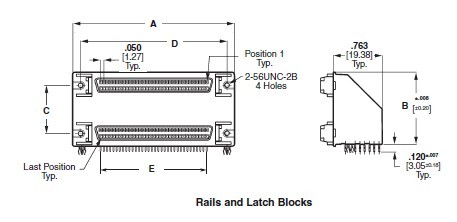

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5749069-9 |
TE Connectivity / AMP |
Headers & Wire Housings VERT RCPT ASSY 100 50SR |
Data Sheet |
|
|
||||||||||||
