Product Summary

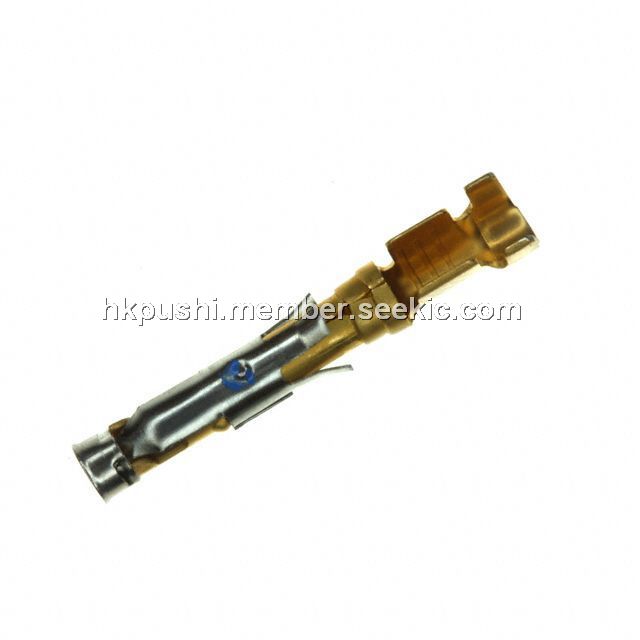

The 66101-4 is a M series pin and socket connector.

Parametrics

66101-4 absolute maximum ratings: (1)Temperature Rating: Phenolic Housings, -55℃ to +150℃; Diallyl Phthalate Housings, -65℃ to +125℃; Polyester, -55℃ to +130℃; (2)Flammability Ratings: UL94V-0 Dielectric Withstanding; (3)Voltage (at sea level): Type II Contacts: 1500 VAC, RMS; Type III+ Contacts: 900 VAC, RMS; (4)Durability (Mating/Unmating): Types II and III+ Contacts, Gold Plated: 500 cycles; Types II and III+ Contacts, Tin Plated: 50 cycles; Type I Contacts, Gold Plated: 100 cycles.

Features

66101-4 features: (1)Contact Type = Socket; (2)Contact Classification = Signal; (3)Type III+ Series; (4)Gold (15) Contact Plating, Mating Area, Material; (5)Wire Range = 0.80-1.40 [18-16] mm [AWG].

Diagrams

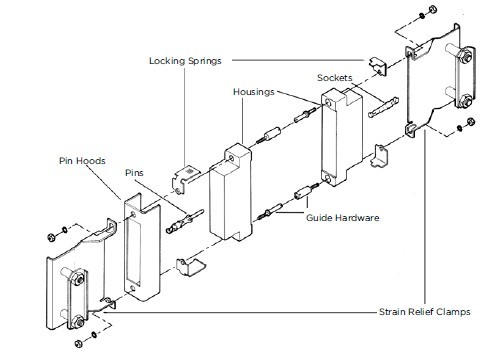

66101-4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
66101-4
66101-4
TE Connectivity / AMP
Standard Circular Connectors GOLD SOCKET 18-16
Data Sheet
0-1: $0.43
1-100: $0.35
100-1000: $0.28
1000-2000: $0.27
