Product Summary

The 66565-4 is a M-series pin-and-socket connector.

Parametrics

66565-4 absolute maximum ratings: (1)High Current: No; (2)Test Current (A): 13.0 A; (3)Termination End Plating = Matte Tin Over Nickel; (4)Pin Diameter (mm [in]) = 1.57 [0.062].

Features

66565-4 features: (1)Contact Type = Socket; (2)Contact Classification = Signal; (3)Type III+ Series; (4)Gold (30) Contact Plating, Mating Area, Material; (5)Wire Range = 0.20-0.602 [24-20] mm [AWG].

Diagrams

66565-4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
66565-4
66565-4
TE Connectivity / AMP

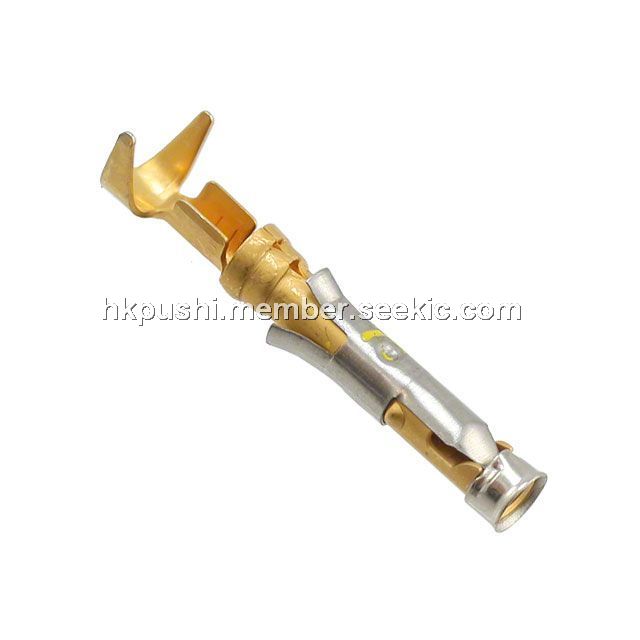

Standard Circular Connectors CONTACT SOCKET GOLD
Data Sheet
0-1: $0.29
1-100: $0.29
100-1000: $0.28
1000-2000: $0.25
