Product Summary
The 163087-9 is a Pin and socket connector.
Parametrics
163087-9 absolute maximum ratings: (1)Test Current: 13.0A; (2)Termination End Plating = Tin; (3)Pin Diameter (mm [in]) = 1.57 [0.062]; (4)High Current = No.
Features
163087-9 features: (1)Contact Type = Socket; (2)Contact Classification = Signal; (3)Type III+ Series; (4)Tin Contact Plating, Mating Area, Material; (5)Wire Range = 0.20-0.60 [24-20] mm [AWG].

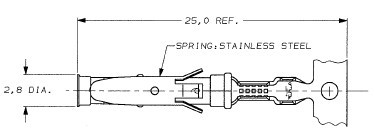

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 163087-9 |
TE Connectivity / AMP |
Pin & Socket Connectors 062 SOC.ASS. TYP3+ |
Data Sheet |
|
|
||||||||||||||||||||||
